Version

Available since 2022.11 Bugfix since 2023.01.04

Bugfix

There was an error after moving lookup -fields into columns: The "Eye"-button for opening the selected record did not work as expected. The error was fixed in Release 2023/01/04.

Layout improvement

Left-, inline- and right-aligment of columns and contained controls has been improved on 2023/02/06.

Experimental

Fields in Columns

Next to Inline-Feature we are now able to arrange multiple fields in columns accurately. Once again we are using Bootstrap's 12-columns-grid system.

Code

1
2
3

    // file: hooks/TABLENAME-dv.js
    var fields = AppGiniHelper.DV.getFields(["sector_id", "reference", "last_name", "first_name", "retention_year"]);
    fields.toColumns([12, 4, 3, 3, 2]);

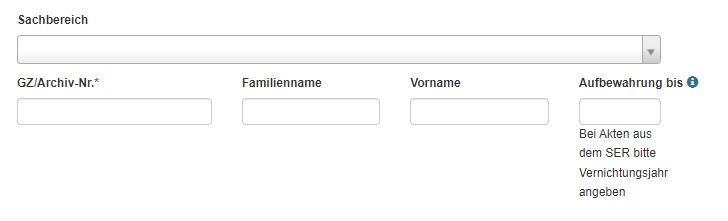

Result

According to the widths-array [12, 4, 3, 3, 2] , the fields have been placed inside separate columns

Note

Long-text labels may overlap with other columns. To avoid this, change the columns' widths accordingly

Additional label

By default, the given fields will just be placed in columns:

1

var fields = dv.getFields(["bundle_id", "product_id", "customer_id"]).toColumns();

or

1

var fields = dv.getFields(["bundle_id", "product_id", "customer_id"]).toColumns([4,4,4]);

Output

If you want to give the group a label, then you can pass the label in the second parameter:

1

var fields = dv.getFields(["bundle_id", "product_id", "customer_id"]).toColumns(null, "My Custom Label");

or

1

var fields = dv.getFields(["bundle_id", "product_id", "customer_id"]).toColumns([4,4,4], "My Custom Label");

Output with Custom Label

Note

Note that we have tried to top-align custom label with field labels as good as possible. It may look different in your app depending on column-widths, font-sizes, selected theme or custom CSS.

See also
